Workflows & Orchestrator

Agentcy's orchestration layer enables complex AI workflows, sub-agent management, and multi-model routing through the OpenFang sidecar service. The orchestration system is optional -- Agentcy's core features (graph, chat, connectors) work without it.

Architecture

┌─────────────────────────────────────────────┐
│  Agentcy Frontend                           │
│  /orchestrator (8 tabs)                     │
│  /orchestrator/workflows/:id/edit (editor)  │
└──────────────┬──────────────────────────────┘
               │ REST API
               ▼
┌──────────────────────────────────────┐
│  agentcy-api                              │
│  routes/orchestration_gateway.rs     │
│  (40+ proxy handlers)               │
└──────────────┬───────────────────────┘
               │ HTTP proxy
               ▼
┌──────────────────────────────────────┐
│  OpenFang Sidecar                    │
│  (separate container)               │
│  - Agent management                 │
│  - Workflow execution               │
│  - Model gateway routing            │
│  - Trigger scheduling               │
└──────────────────────────────────────┘

The Agentcy backend acts as a proxy to OpenFang, adding authentication, tenant isolation, and graceful degradation.

Enabling OpenFang

OpenFang runs as a Docker container under the subagents profile:

# docker-compose.yml
services:
  openfang:
    image: ghcr.io/agentcy/openfang:latest
    profiles: ["subagents"]
    ports:
      - "3002:3002"
    environment:
      - DATABASE_URL=postgresql://...
      - REDIS_URL=redis://...

Start with the profile enabled:

docker compose --profile subagents up -d

Set the OpenFang URL in your environment:

OPENFANG_URL=http://localhost:3002

TIP

OpenFang is entirely optional. When it is unavailable, all orchestration endpoints return 503 Service Unavailable with a clear error message. The rest of Agentcy continues to work normally.

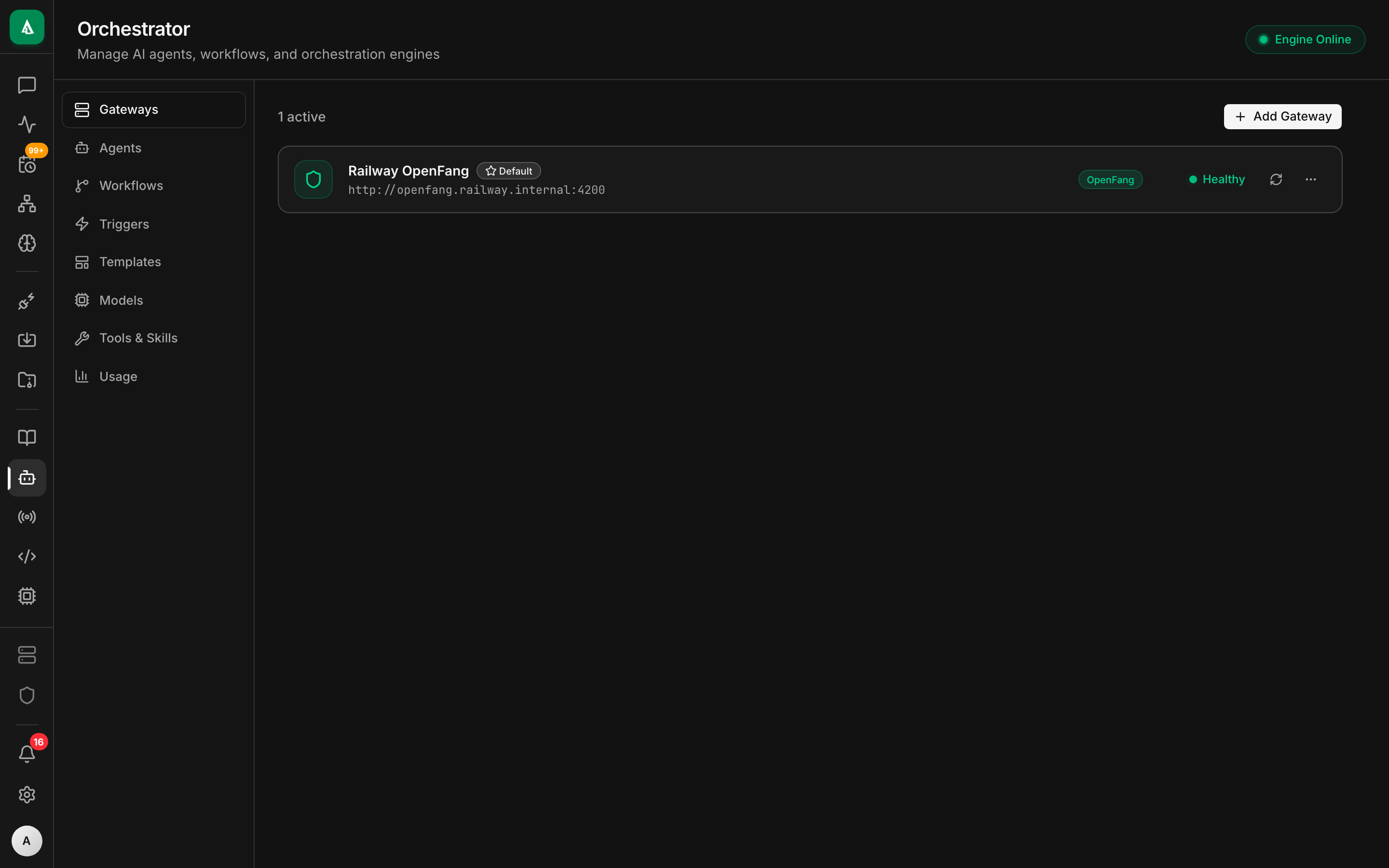

UI Overview

The orchestration page at /orchestrator provides 8 tabs:

Tab	Description
Gateways	Manage AI model gateways for routing requests to different providers
Agents	Create, configure, and monitor sub-agents
Workflows	Build and manage multi-step automation workflows
Triggers	Schedule workflows via cron, webhooks, or lifecycle events
Templates	Pre-built workflow templates for common patterns
Models	View and configure available AI models across gateways
Skills	Reusable skill definitions that agents can invoke
Usage	Token usage, cost tracking, and rate limit monitoring

Gateways

Gateways manage routing to different AI providers. Each gateway defines a provider, authentication, and routing rules.

Create a Gateway

POST /api/v1/orchestration/gateways

{
  "name": "Claude Production",
  "provider": "anthropic",
  "config": {
    "api_key": "sk-ant-...",
    "default_model": "claude-sonnet-4-20250514",
    "max_tokens": 8192,
    "rate_limit_rpm": 1000
  },
  "priority": 1,
  "enabled": true
}

Gateway Routing

When multiple gateways are configured, the system routes requests based on:

1. Priority -- lower number = higher priority
2. Model availability -- route to the gateway that supports the requested model
3. Rate limits -- fall back to secondary gateways when primary is rate-limited
4. Health -- skip gateways that are down

Agents

Sub-agents are isolated AI contexts that can be spawned for specific tasks.

Create an Agent

POST /api/v1/orchestration/agents

{
  "name": "Code Reviewer",
  "description": "Reviews pull requests for security issues and best practices",
  "model": "claude-sonnet-4-20250514",
  "gateway_id": "gw-123",
  "system_prompt": "You are a code review specialist...",
  "tools": ["search_nodes", "run_cypher"],
  "max_turns": 5
}

Agent Lifecycle

Created → Active → Running → Completed
                  ↘ Failed
                  ↘ Timed Out

Workflows

Workflows define multi-step automation sequences. Each step can execute tools, call sub-agents, run conditionals, or wait for events.

Workflow Structure

{
  "name": "PR Review Pipeline",
  "description": "Automated PR review and notification",
  "steps": [
    {
      "id": "fetch-pr",
      "type": "tool",
      "tool_name": "execute_connector_tool",
      "params": {
        "source_id": "github-1",
        "tool_name": "get_pull_request",
        "params": { "repo": "{{trigger.repo}}", "number": "{{trigger.pr_number}}" }
      }
    },
    {
      "id": "review",
      "type": "agent",
      "agent_id": "code-reviewer",
      "input": "Review this PR: {{steps.fetch-pr.output}}",
      "depends_on": ["fetch-pr"]
    },
    {
      "id": "notify",
      "type": "tool",
      "tool_name": "execute_connector_tool",
      "params": {
        "source_id": "github-1",
        "tool_name": "create_comment",
        "params": {
          "repo": "{{trigger.repo}}",
          "issue_number": "{{trigger.pr_number}}",
          "body": "{{steps.review.output}}"
        }
      },
      "depends_on": ["review"]
    }
  ]
}

Visual Workflow Editor

The editor at /orchestrator/workflows/:id/edit provides a full-screen canvas built with React Flow:

• Drag-and-drop step nodes onto the canvas
• Connect steps by dragging edges between nodes
• Properties panel on the right for editing step configuration
• Variable interpolation using {{trigger.*}} and {{steps.<id>.output}}
• Step types: Tool, Agent, Condition, Loop, Wait, Parallel
• Toolbar with save, run, and trigger creation buttons

Step types

Type	Description
Tool	Execute a graph tool or connector tool
Agent	Invoke a sub-agent with a prompt
Condition	Branch based on a condition expression
Loop	Iterate over an array from a previous step
Wait	Pause for a duration or until an event
Parallel	Run multiple steps concurrently

Creating a New Workflow

Navigate to /orchestrator/workflows/new to create a workflow from scratch in the visual editor, or use the quick-edit sheet on the workflows tab for simple edits.

Running a Workflow

POST /api/v1/orchestration/workflows/:id/run

{
  "inputs": {
    "repo": "frontend",
    "pr_number": 142
  }
}

{
  "run_id": "run-abc-123",
  "status": "running",
  "started_at": "2026-03-10T12:00:00Z"
}

Viewing Run History

GET /api/v1/orchestration/workflows/:id/runs

The workflow detail page at /orchestrator/workflows/:id shows:

• Run history with status, duration, and step-by-step results
• Steps overview with the execution graph
• A Run button to trigger manually

Triggers

Triggers automate workflow execution. Three types are supported:

Schedule (Cron)

{
  "type": "schedule",
  "workflow_id": "wf-123",
  "config": {
    "cron": "0 9 * * 1-5",
    "timezone": "America/New_York"
  }
}

Webhook

{
  "type": "webhook",
  "workflow_id": "wf-123",
  "config": {
    "path": "/hooks/pr-review",
    "secret": "whsec_...",
    "filter": "$.action == 'opened'"
  }
}

The webhook URL is exposed at:

POST /api/v1/orchestration/webhooks/:path

Lifecycle

Triggered by Agentcy system events:

{
  "type": "lifecycle",
  "workflow_id": "wf-123",
  "config": {
    "event": "source.sync.completed",
    "source_id": "github-1"
  }
}

Available lifecycle events:

Event	Description
source.sync.completed	A connector sync finished successfully
source.sync.failed	A connector sync failed
worker.registered	A new worker came online
worker.disconnected	A worker went offline
policy.violation	A policy deny was triggered

Graceful Degradation

When OpenFang is unavailable, all orchestration endpoints return:

{
  "error": "Orchestration service unavailable",
  "code": "SERVICE_UNAVAILABLE",
  "message": "OpenFang sidecar is not running. Start it with: docker compose --profile subagents up -d"
}

The frontend detects this and shows a setup prompt instead of empty tabs.

WARNING

Workflows that are scheduled via triggers will not execute while OpenFang is down. Missed triggers are not replayed when the service comes back online.

API Reference

Method	Endpoint	Description
Gateways
POST	/api/v1/orchestration/gateways	Create gateway
GET	/api/v1/orchestration/gateways	List gateways
GET	/api/v1/orchestration/gateways/:id	Get gateway
PUT	/api/v1/orchestration/gateways/:id	Update gateway
DELETE	/api/v1/orchestration/gateways/:id	Delete gateway
Agents
POST	/api/v1/orchestration/agents	Create agent
GET	/api/v1/orchestration/agents	List agents
GET	/api/v1/orchestration/agents/:id	Get agent
PUT	/api/v1/orchestration/agents/:id	Update agent
DELETE	/api/v1/orchestration/agents/:id	Delete agent
Workflows
POST	/api/v1/orchestration/workflows	Create workflow
GET	/api/v1/orchestration/workflows	List workflows
GET	/api/v1/orchestration/workflows/:id	Get workflow
PUT	/api/v1/orchestration/workflows/:id	Update workflow
DELETE	/api/v1/orchestration/workflows/:id	Delete workflow
POST	/api/v1/orchestration/workflows/:id/run	Run workflow
GET	/api/v1/orchestration/workflows/:id/runs	Get run history
Triggers
POST	/api/v1/orchestration/triggers	Create trigger
GET	/api/v1/orchestration/triggers	List triggers
DELETE	/api/v1/orchestration/triggers/:id	Delete trigger
Templates
GET	/api/v1/orchestration/templates	List templates
POST	/api/v1/orchestration/templates/:id/instantiate	Create workflow from template
Models & Usage
GET	/api/v1/orchestration/models	List available models
GET	/api/v1/orchestration/usage	Usage statistics
